ZWZ / CATALOGUES

Transmission bearings

96 original pages · Structures, applications and parameter tables

← Catalogue library

Original pages preserve table headers, units, designation suffixes and diagram relationships. Capacity, lead times and historical certifications refer to this catalogue edition and are not current supply commitments. Confirm specific designations and operating conditions through technical and business consultation.

Matching pages: 96

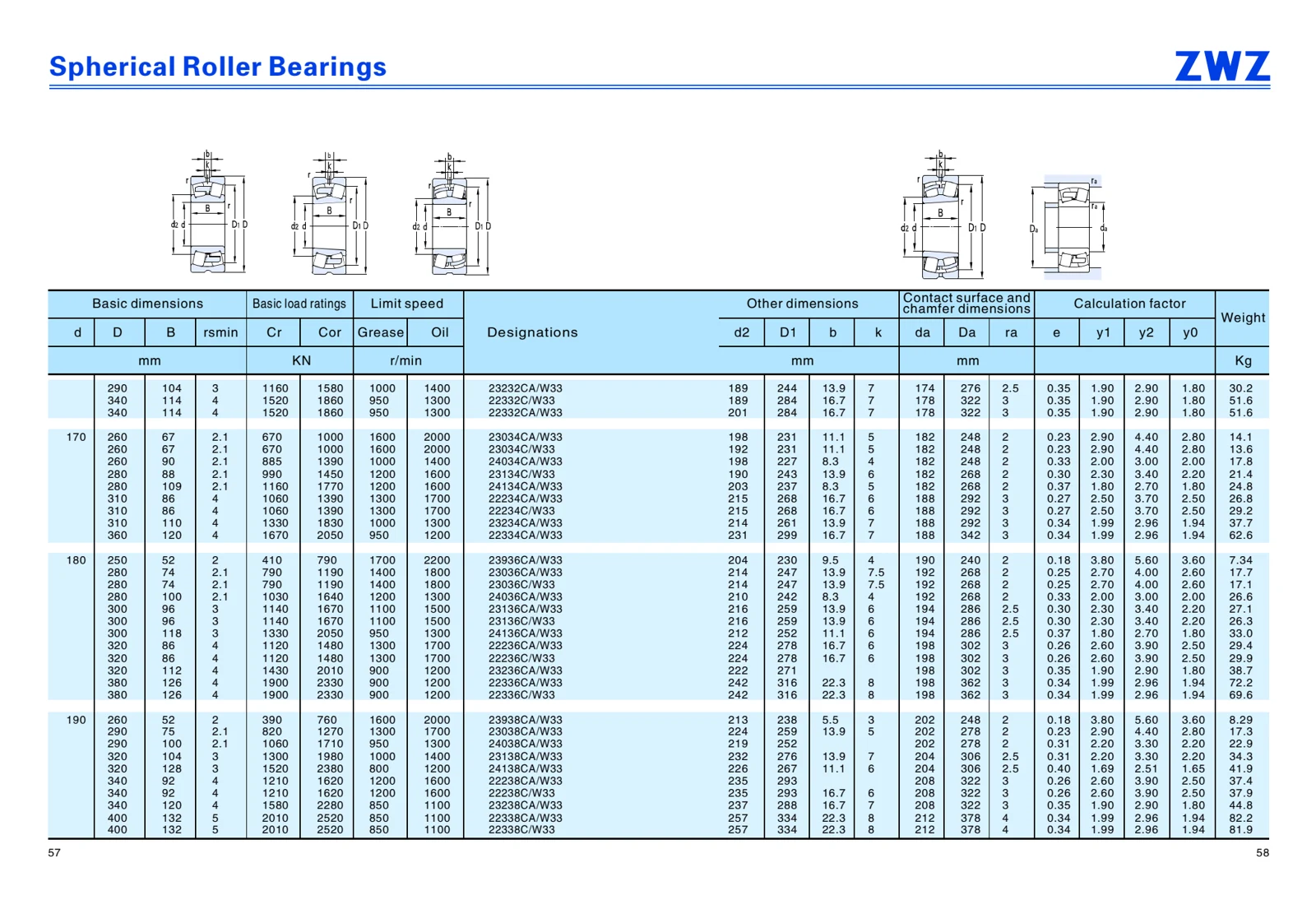

Transmission bearings · Page 49

Transmission bearings · 49 — Click to enlarge the original content and tables

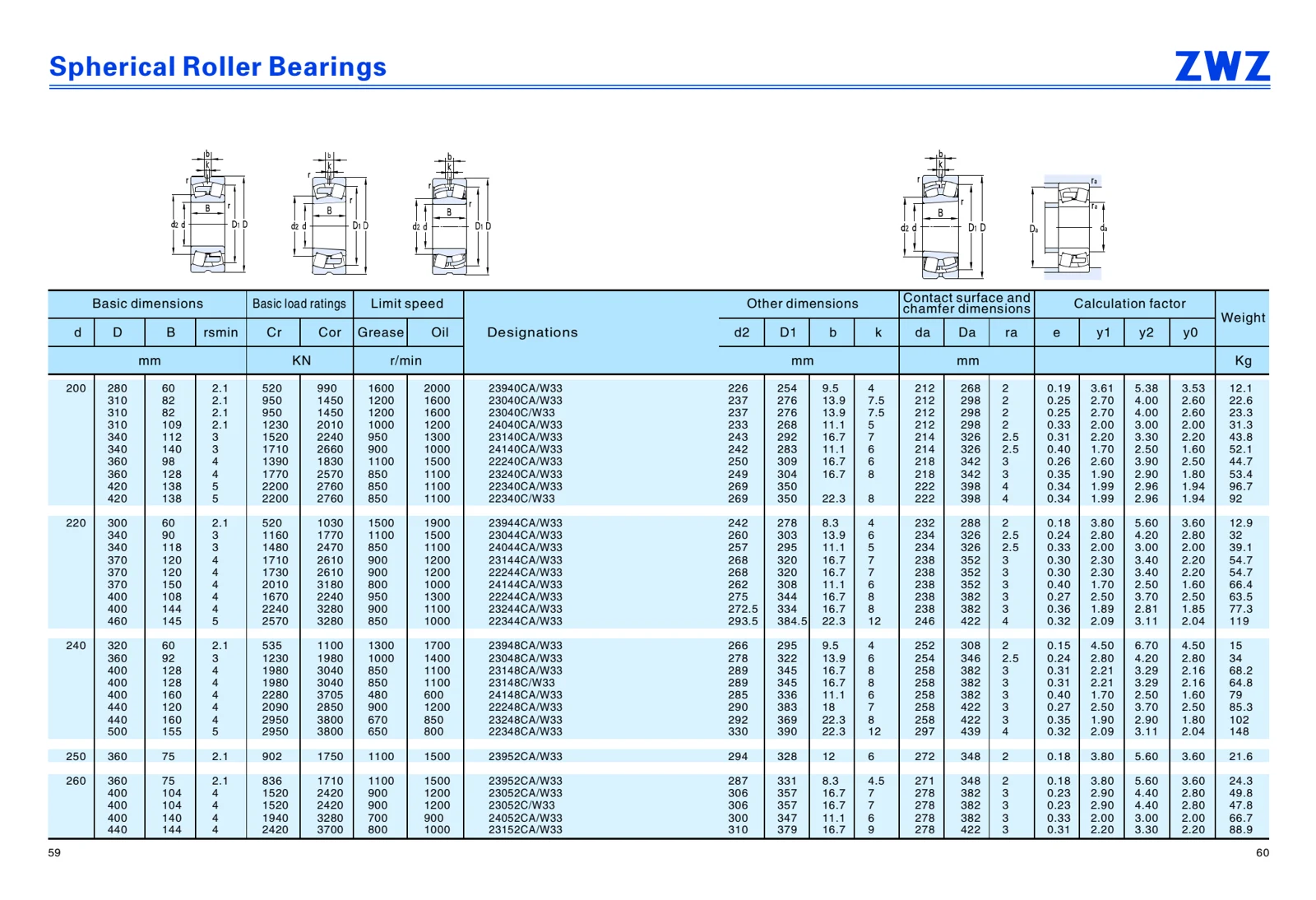

Transmission bearings · Page 50

Transmission bearings · 50 — Click to enlarge the original content and tables

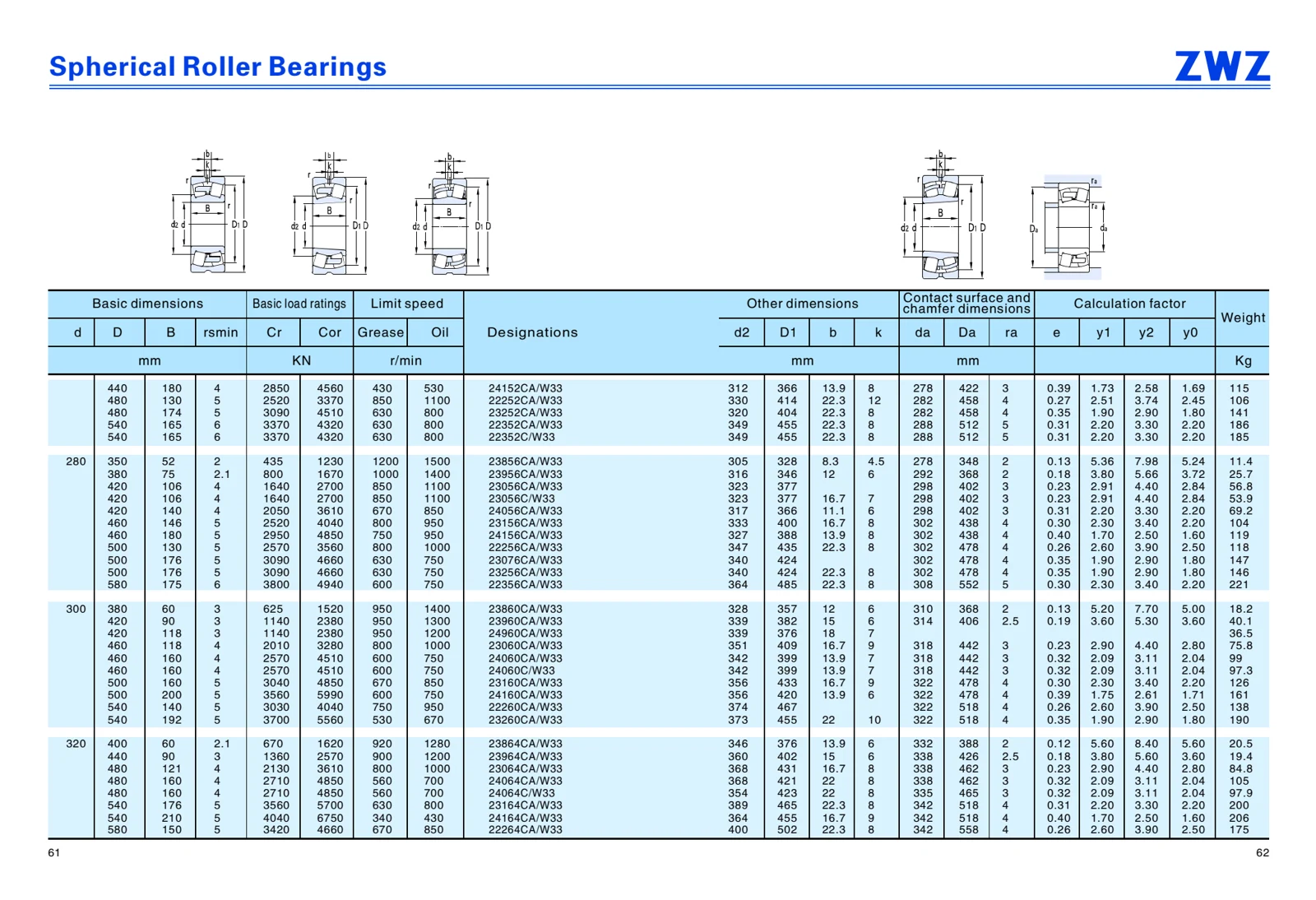

Transmission bearings · Page 51

Transmission bearings · 51 — Click to enlarge the original content and tables

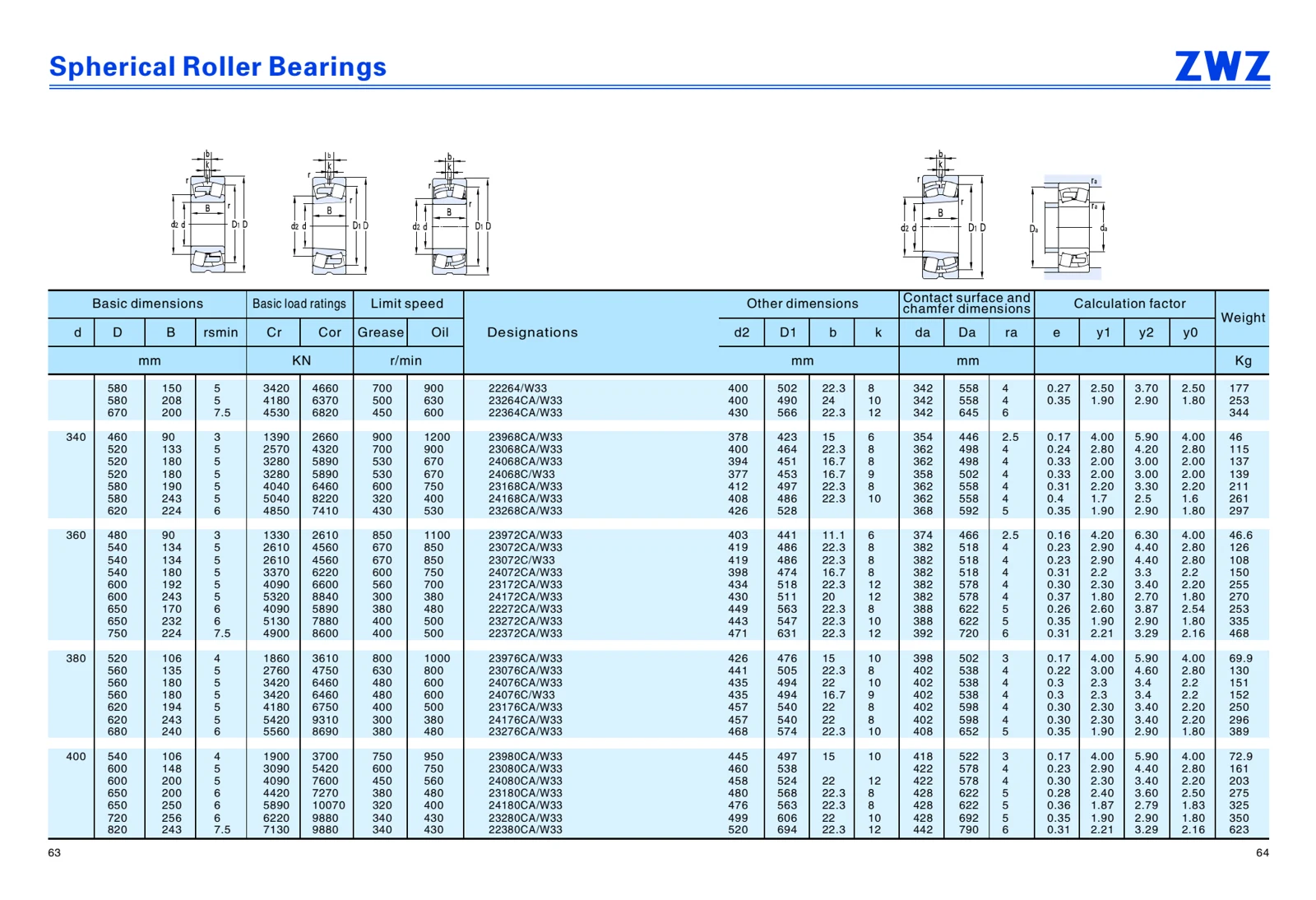

Transmission bearings · Page 52

Transmission bearings · 52 — Click to enlarge the original content and tables

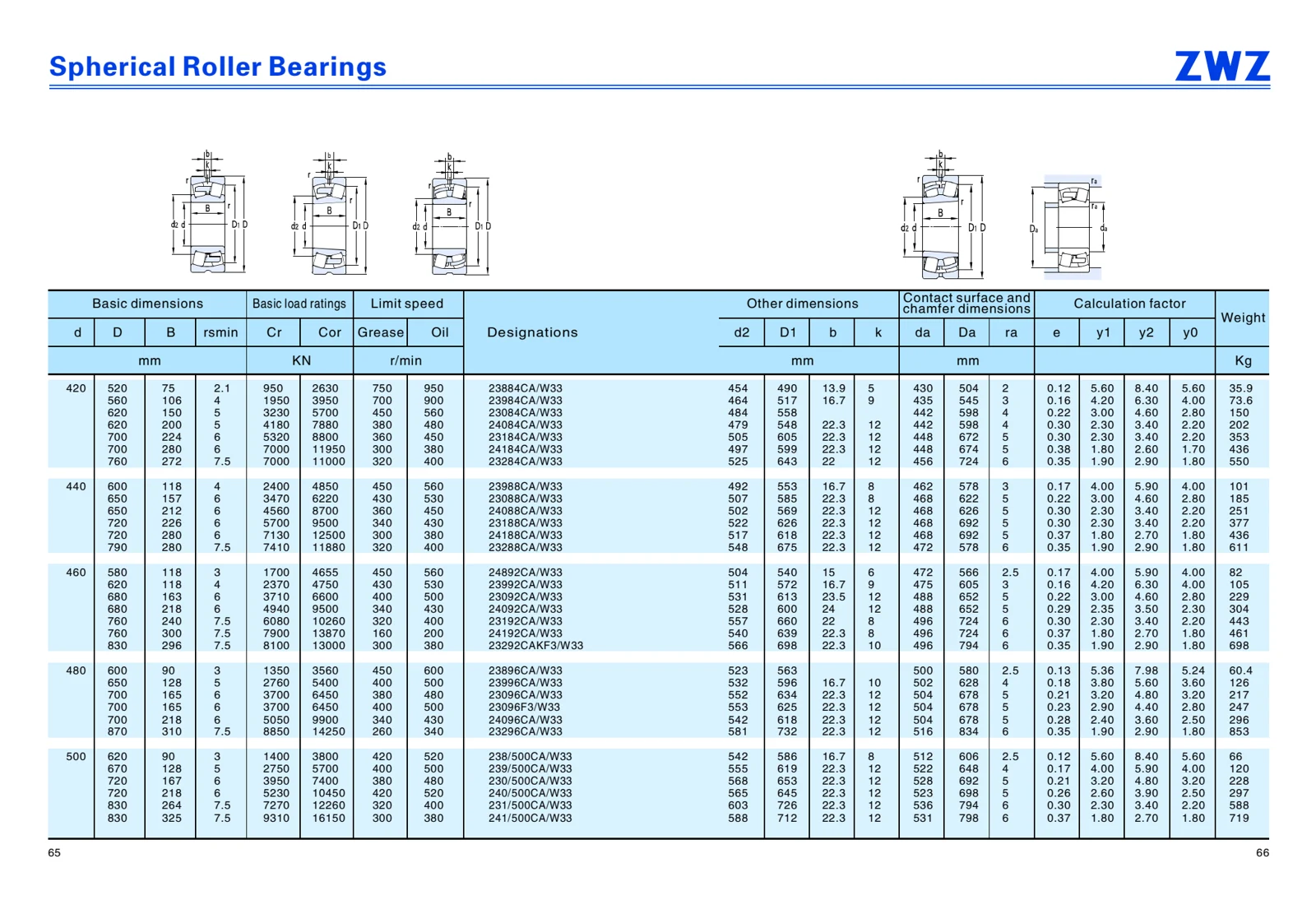

Transmission bearings · Page 53

Transmission bearings · 53 — Click to enlarge the original content and tables

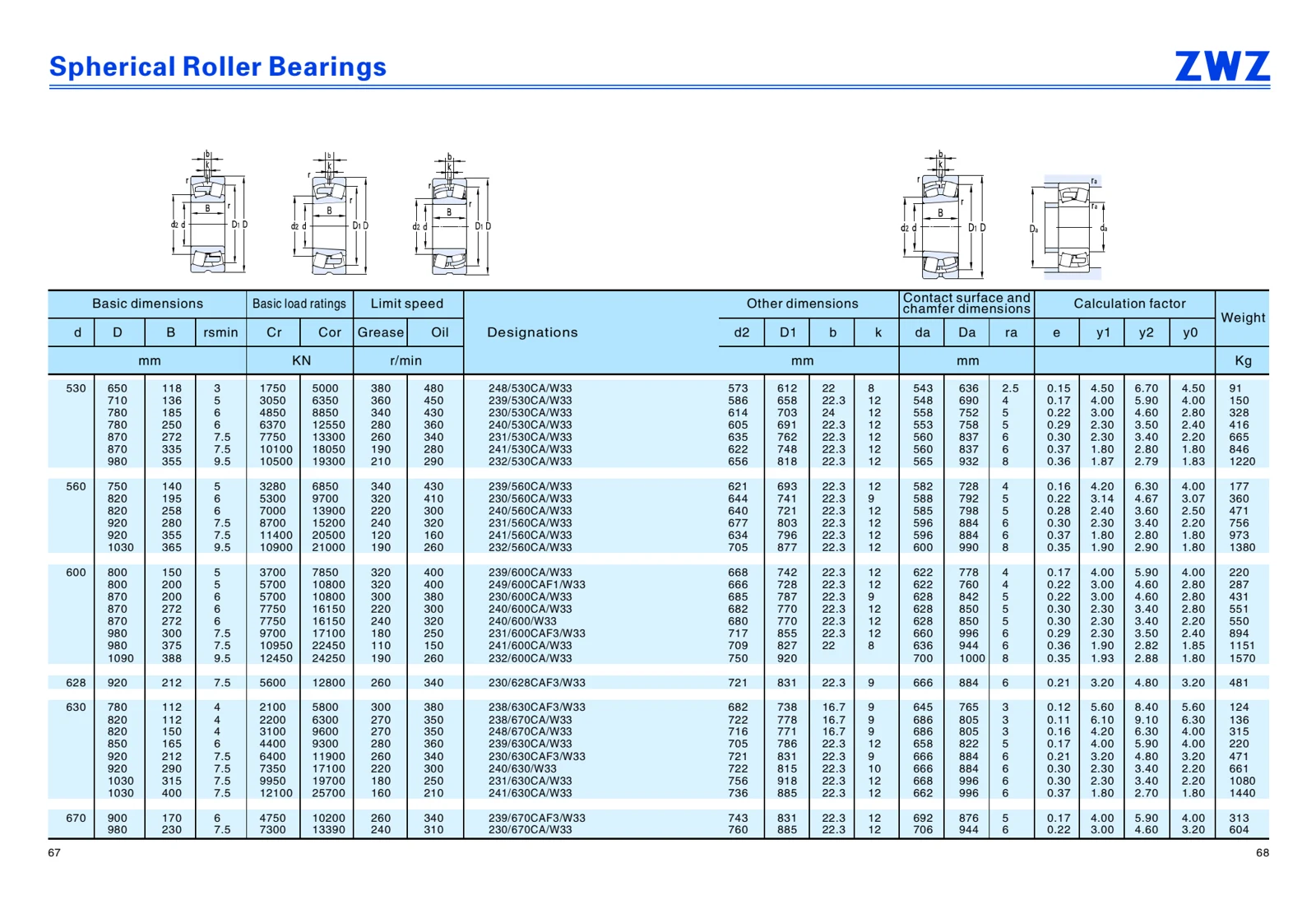

Transmission bearings · Page 54

Transmission bearings · 54 — Click to enlarge the original content and tables
