ZWZ / Tapered roller bearings
30224
Add conditions and submit requirement →
Contact our team for product and supply information.
Core dimensions
d / mm120.000
D / mm215.000
B / mm40.000
T / mm43.500
C / mm34.000

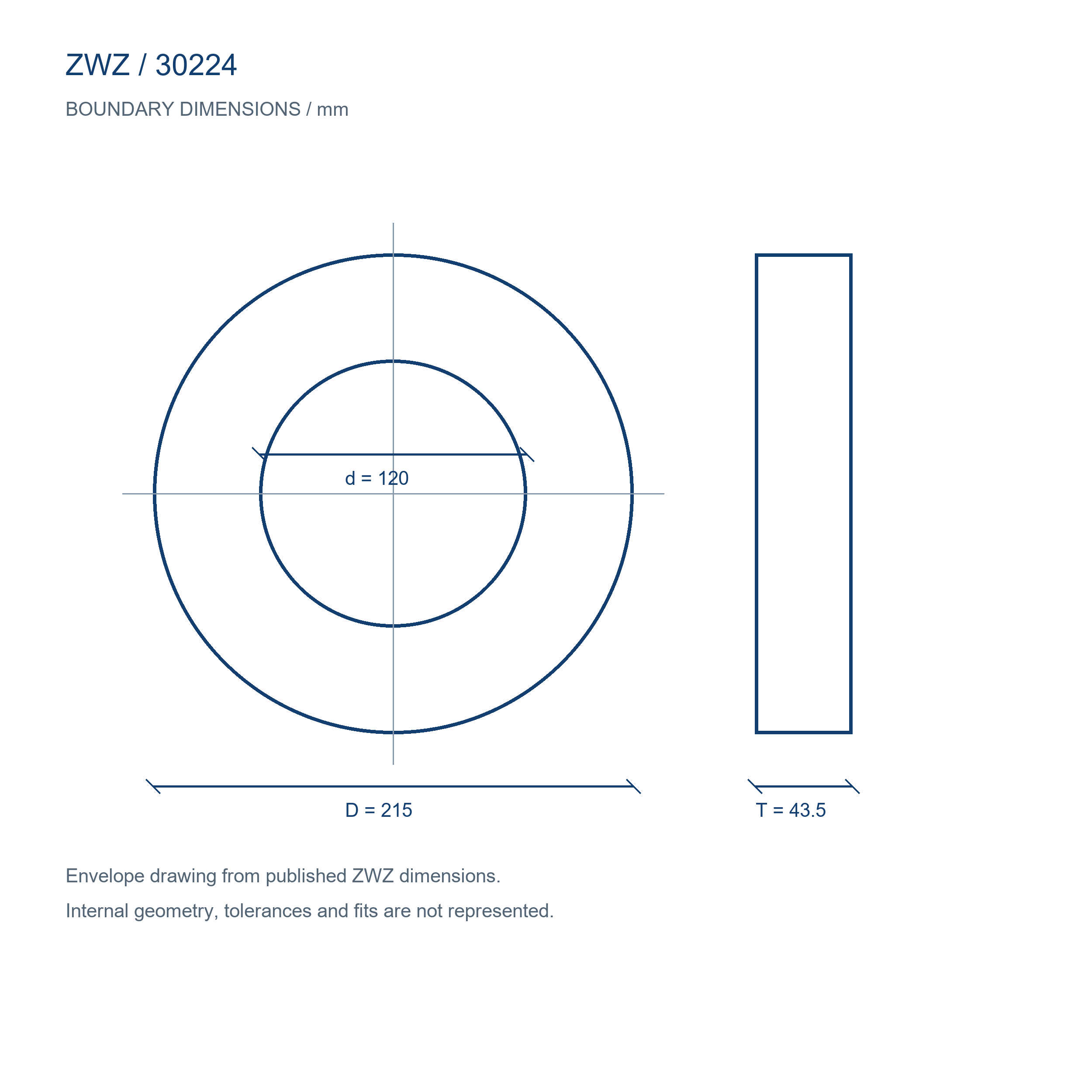

Designation dimension drawing
Open the 2500 × 2500 dimension drawing.
Technical parameters
| Parameter / unit | Source value |
|---|---|
| Mass / kg | 6.170 |
| Basic static load rating / kN | 473.000 |
| Basic dynamic load rating / kN | 382.000 |
| Oil limiting speed / rpm | 2200 |
| Grease limiting speed / rpm | 1700 |
Ask about supply availability. Category illustrations are for reference. Contact us for designation-specific photographs, drawings or documents.
