ZWZ / Tapered roller bearings
30212
Add conditions and submit requirement →
Contact our team for product and supply information.
Core dimensions
d / mm60.000
D / mm110.000
B / mm22.000
T / mm23.750
C / mm19.000

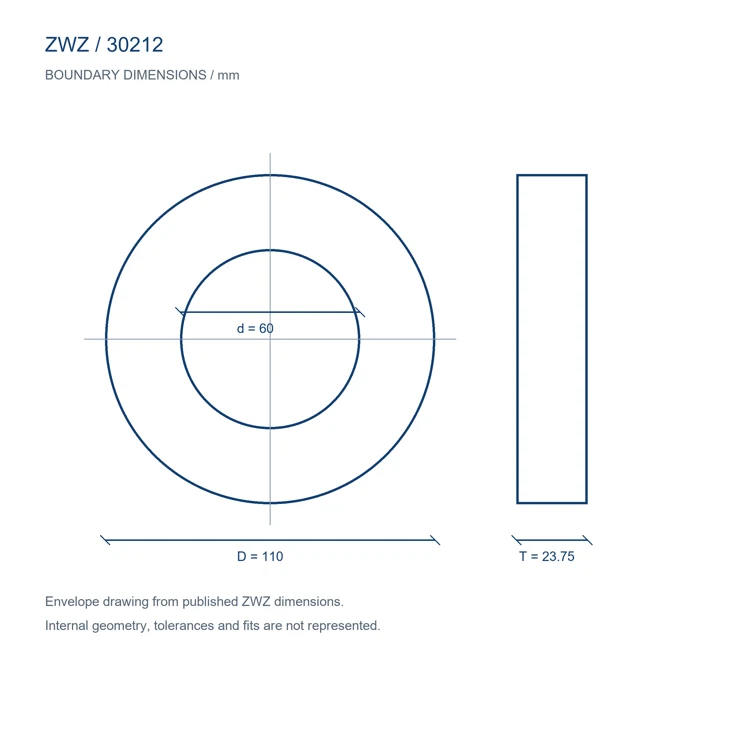

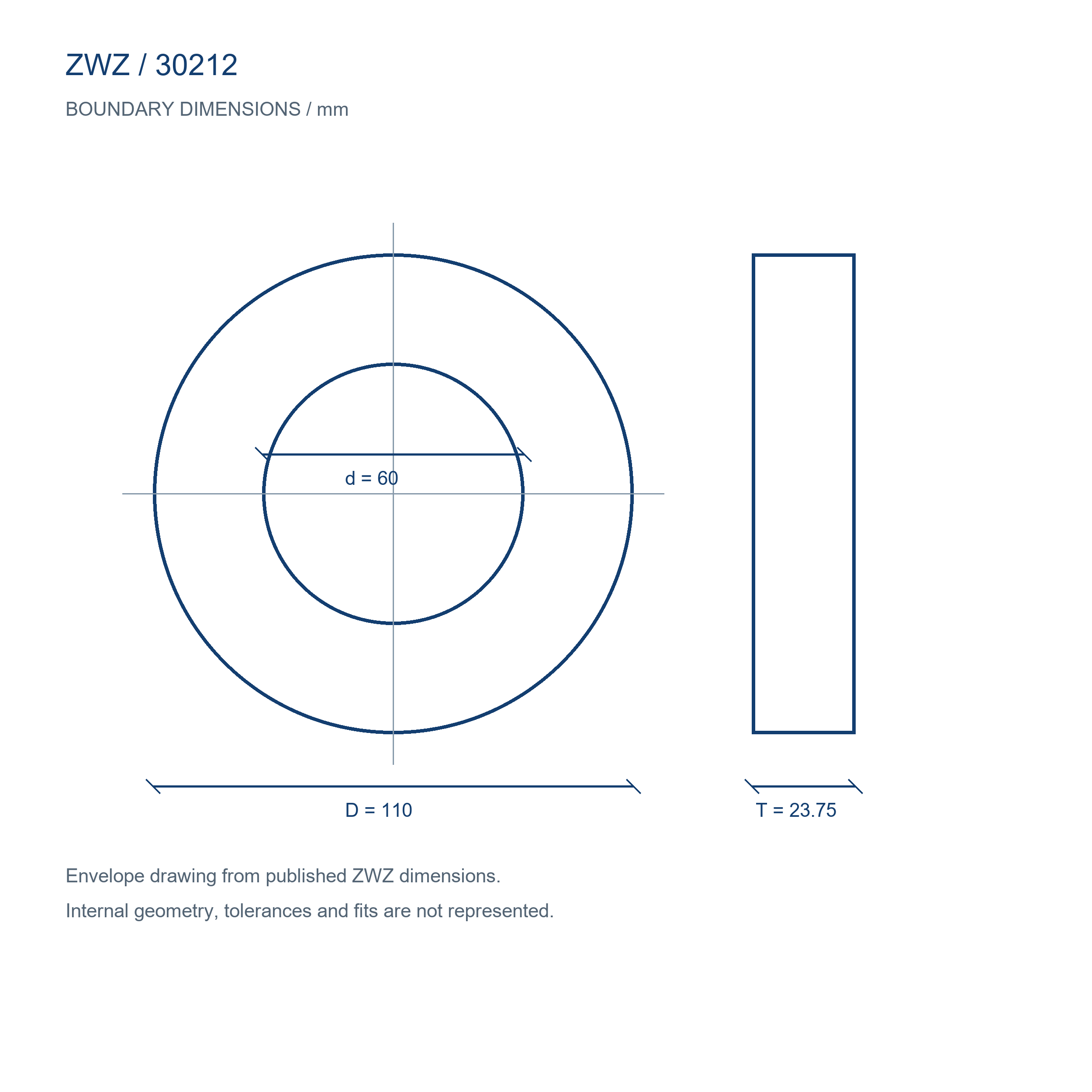

Designation dimension drawing
Open the 2500 × 2500 dimension drawing.
Technical parameters
| Parameter / unit | Source value |
|---|---|
| Mass / kg | 0.923 |
| Basic static load rating / kN | 129.000 |
| Basic dynamic load rating / kN | 118.000 |
| Oil limiting speed / rpm | 4500 |
| Grease limiting speed / rpm | 3600 |
Ask about supply availability. Category illustrations are for reference. Contact us for designation-specific photographs, drawings or documents.
