ZWZ / Tapered roller bearings
30211
Add conditions and submit requirement →
Contact our team for product and supply information.
Core dimensions
d / mm55.000
D / mm100.000
B / mm21.000
T / mm22.750
C / mm18.000

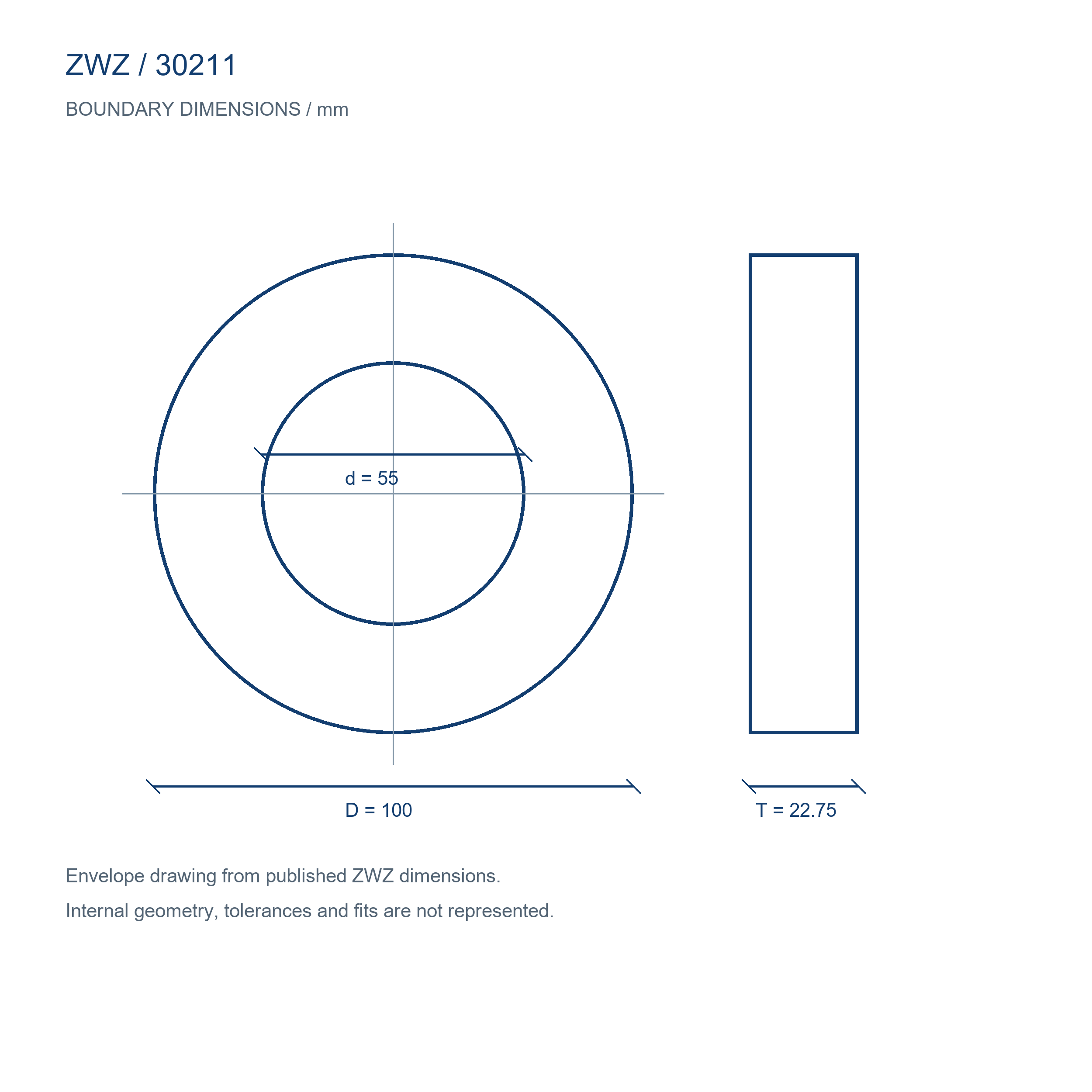

Designation dimension drawing
Open the 2500 × 2500 dimension drawing.
Technical parameters
| Parameter / unit | Source value |
|---|---|
| Mass / kg | 0.713 |
| Basic static load rating / kN | 114.000 |
| Basic dynamic load rating / kN | 105.000 |
| Oil limiting speed / rpm | 5000 |
| Grease limiting speed / rpm | 3900 |
Ask about supply availability. Category illustrations are for reference. Contact us for designation-specific photographs, drawings or documents.
