ZWZ / Spherical roller bearings
22317CA
Add conditions and submit requirement →
Contact our team for product and supply information.
Core dimensions
d / mm85.000
D / mm180.000
B / mm60.000

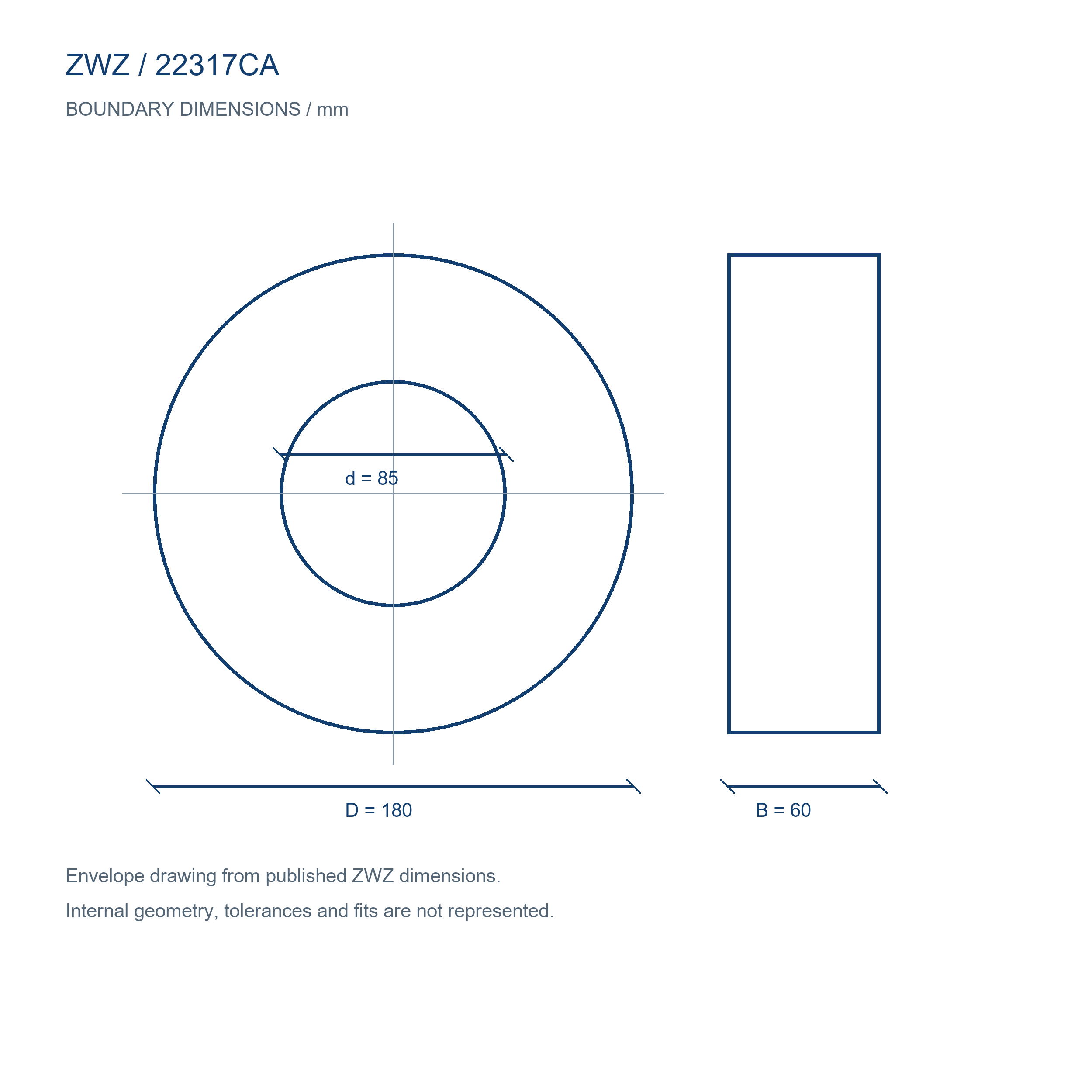

Designation dimension drawing
Open the 2500 × 2500 dimension drawing.
Technical parameters
| Parameter / unit | Source value |
|---|---|
| Mass / kg | 7.960 |
| Basic static load rating / kN | 552.000 |
| Basic dynamic load rating / kN | 439.000 |
| Oil limiting speed / rpm | 2600 |
| Grease limiting speed / rpm | 1900 |
Ask about supply availability. Category illustrations are for reference. Contact us for designation-specific photographs, drawings or documents.
