ZWZ / Spherical roller bearings
22314CC
Add conditions and submit requirement →
Contact our team for product and supply information.
Core dimensions
d / mm70.000
D / mm150.000
B / mm51.000

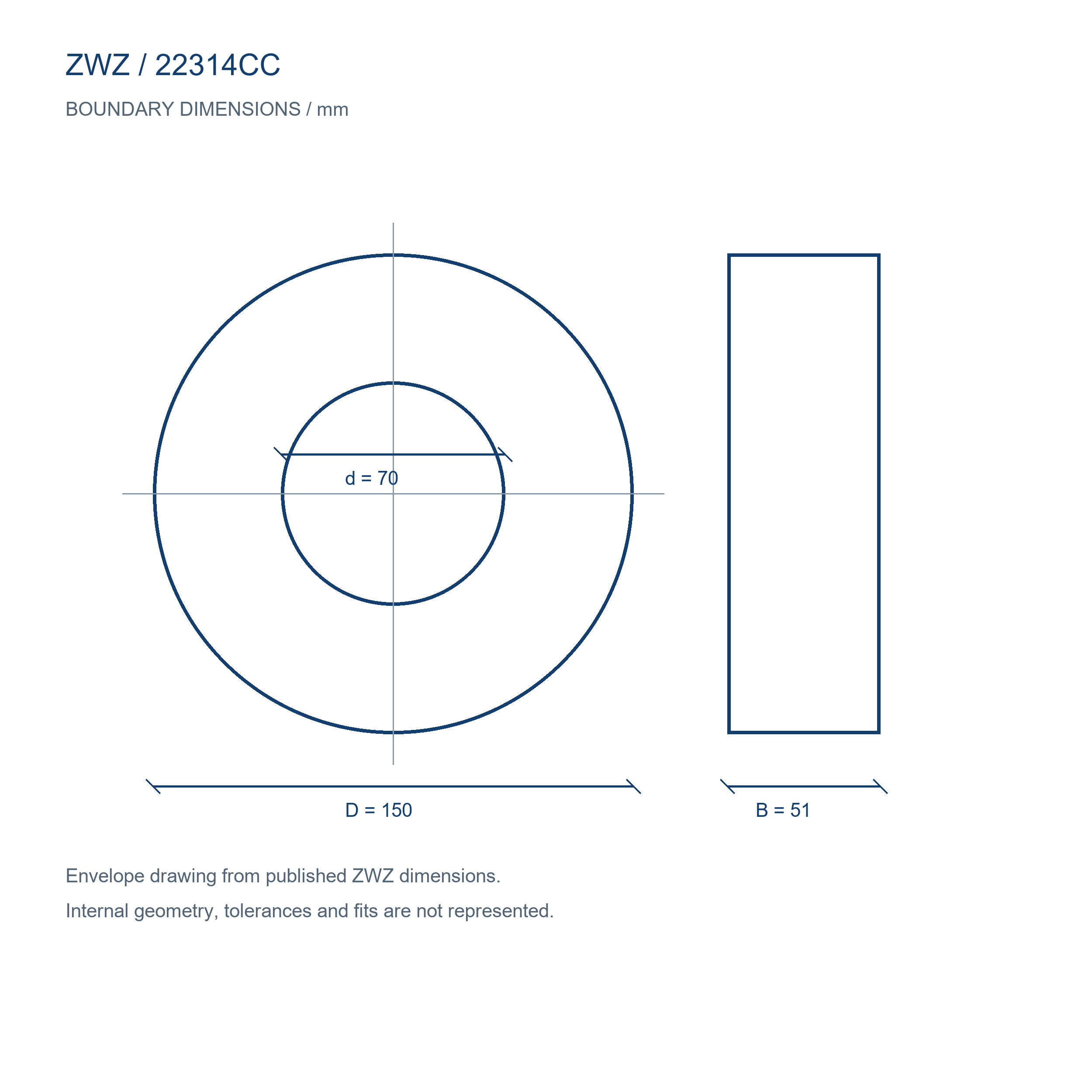

Designation dimension drawing
Open the 2500 × 2500 dimension drawing.
Technical parameters
| Parameter / unit | Source value |
|---|---|
| Mass / kg | 4.260 |
| Basic static load rating / kN | 380.000 |
| Basic dynamic load rating / kN | 410.000 |
| Oil limiting speed / rpm | 3200 |
| Grease limiting speed / rpm | 2400 |
Ask about supply availability. Category illustrations are for reference. Contact us for designation-specific photographs, drawings or documents.
