ZWZ / Spherical roller bearings
22216CA
Add conditions and submit requirement →
Contact our team for product and supply information.
Core dimensions
d / mm80.000
D / mm140.000
B / mm33.000

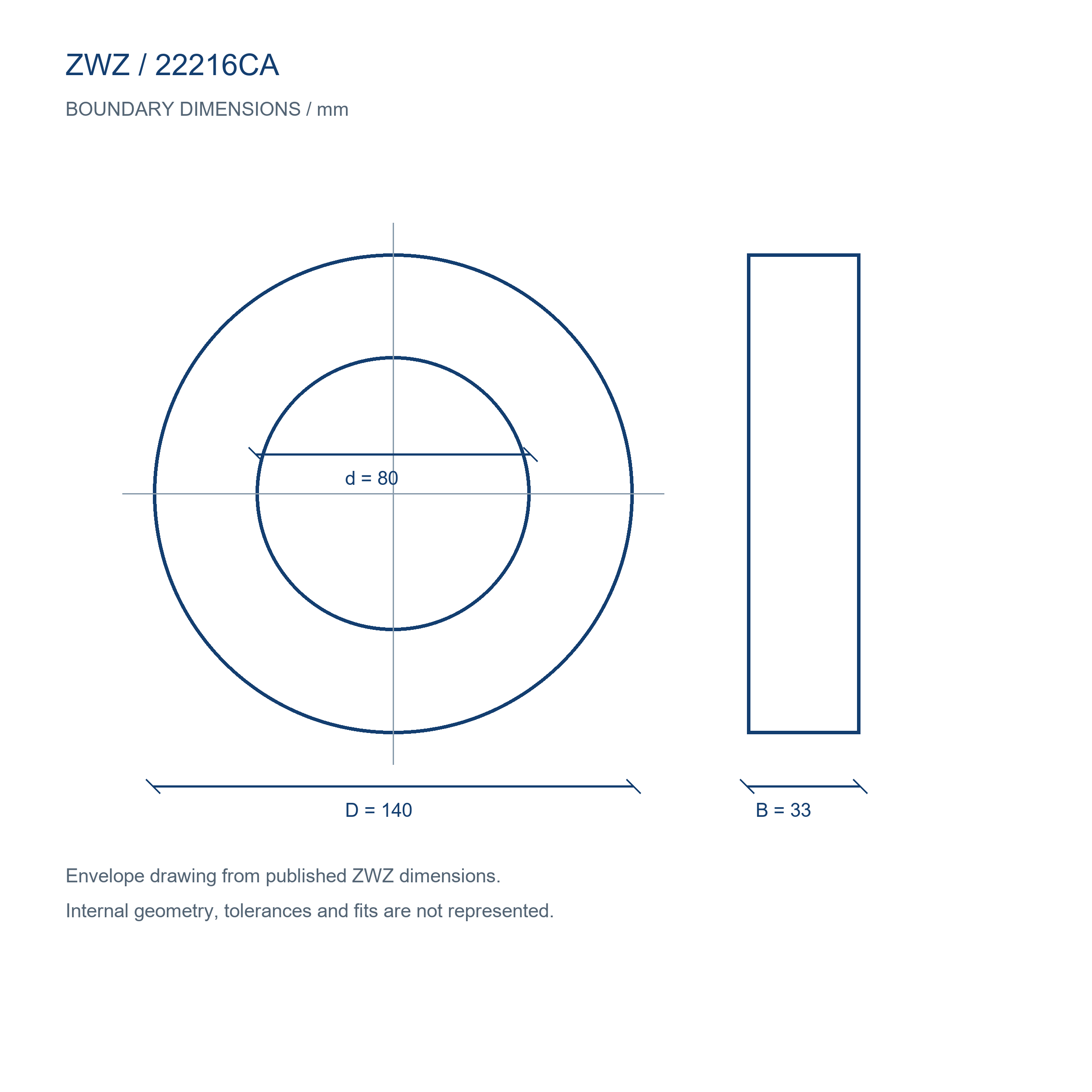

Designation dimension drawing
Open the 2500 × 2500 dimension drawing.
Technical parameters
| Parameter / unit | Source value |
|---|---|
| Mass / kg | 2.030 |
| Basic static load rating / kN | 250.000 |
| Basic dynamic load rating / kN | 189.000 |
| Oil limiting speed / rpm | 4000 |
| Grease limiting speed / rpm | 3200 |
Ask about supply availability. Category illustrations are for reference. Contact us for designation-specific photographs, drawings or documents.
